DCCS(Data Centric Cloud Service)

DCCS is a testbed enabling development of applications and services using various data and functions by providing them to users as a Web API.

DCCS Features

  • Testbed for creating services combining diverse data and Beyond 5G
  • Providing value of using NICT's strengths, such as NICT-owned data and advanced technologies
  • Development environment for new services using B5G networks
  • Rapid verification and introduction into practical use encouraging new services, by accumulating and sharing application samples and use cases with users
  • Data and functions developement in cooperation with external organizations (Testbed Sub-Committee, joint research, etc.)

System Overview

In conjunction with the network and middleware layer, we provide a development environment combining B5G networks with diverse data and its analysis mechanism for data linkage application services, contributing to service creation in the B5G era.

DCCS includes the following modules and functions.

Module/Function Overview
Integrated APIs Provides Web APIs as a unified endpoint allowing access to data and functions.
Data linkage and analysis Provides functions to recognize, discover, and predict occurring events by combining and analyzing diverse data.
These functions use the xData platform to collect and combine IoT data from diverse fields to perform real space analysis of complex situations.
Developer Portal Provides useful information for development, such as Web API and sample applications that can be used as application template.
Platforms Provides via integrated APIs various data and functions developed inside and outside NICT. The platforms listed in the table below will be provided.
システム概要

The following platforms are to be provided.

Platform(PF) Overview
Multilingual Speech Translation PF Provides multilingual speech translation services(speech recognition, multilingual translation, speech synthesis).
This function utilizes the technology of the Advanced Speech Translation Research and Development Promotion Center.
SpatioTemporal Data GIS PF Provides maps and geographic data (block boundaries, historical administrative boundaries, etc.), meteorological data (temperature, humidity, solar radiation, etc.), and functions that utilize these data.SpatioTemporal Data GIS Platform Projectis being utilized.
B5G linked Platform
(In preparation)
Provides functions that enable development and verification using the B5G mobile environment without being conscious of network layer processing.

In addition to the platforms mentioned above, other platforms will be gradually provided, expanding the available data and functions.

Offered Services

Data Linkage and Analysis Functions

The data linkage and analysis functions provide capabilities to combine and analyze various data, recognizing, discovering, and predicting events that are occurring. It can be used as a development environment for systems that perform predictions, mainly targeting weather data and environmental data, through Web API services. In addition, a system that predicts the Air Quality Index (AQI), which indicates air quality ("Environmental Quality Short-Term Prediction"), is also provided as a sample application that serves as a base or reference for users during development. Using these development environments and sample applications, users can also develop predictive systems using data they collect independently.

Sample applications using the data linkage and analysis functions, as well as the environmental quality short-term prediction, are available for public use. Please refer to them for your reference.

データ連携利活用サービス開発環境

Multilingual Speech Translation Platform

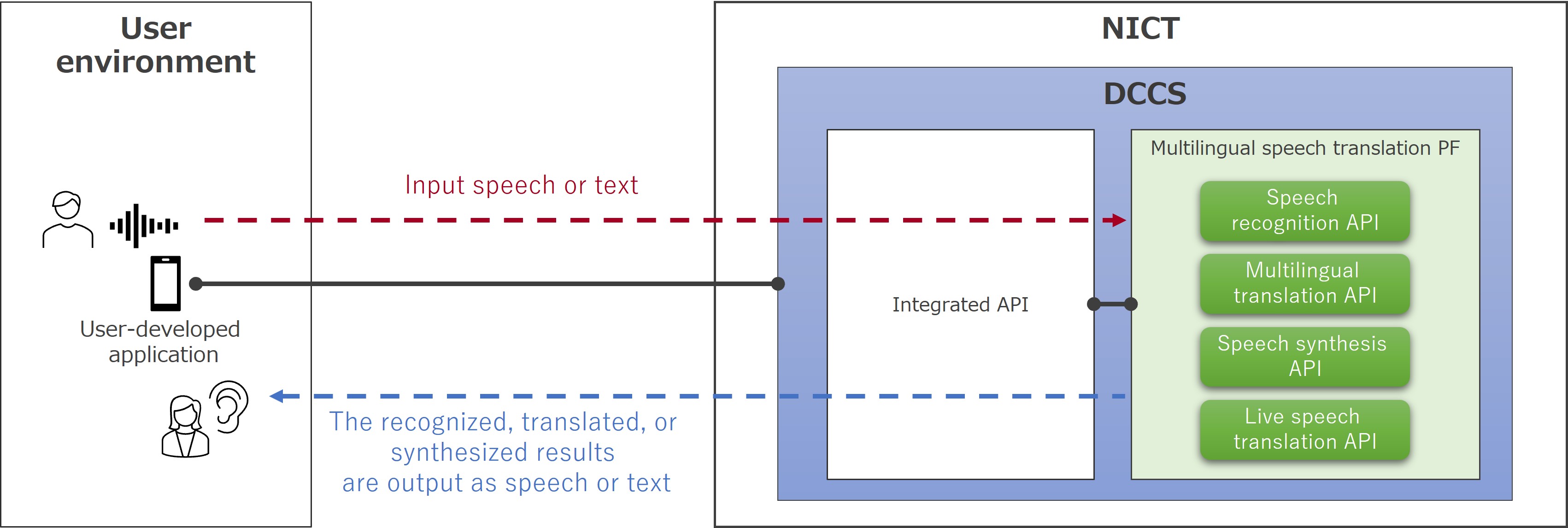

The Multilingual Speech Translation Platform provides functions for speech recognition, multilingual translation, and speech synthesis, and by integrating these functions, it enables live speech translation that translates inputted speech and outputs the result as speech. Please note that the translation function is designed for short conversational sentences and does not support long sentences.

The languages targeted by the Multilingual Speech Translation Platform are as follows.

Target Languages
(13 Languages)
Japanese, English, Simplified Chinese, Traditional Chinese, Korean, Thai, French, Indonesian, Vietnamese, Spanish, Myanmar(Burmese), Filipino, Brazilian Portuguese

Additionally, each function is provided through an API with interfaces for WebSocket and HTTP protocols.

Function Overview Corresponding API
WebSocket API HTTP API
Speech Recognition It recognizes the inputted speech and outputs it as text.
Multilingual Translation It translates the inputted text and outputs it as text.
Speech Synthesis It synthesizes the inputted text and outputs it as speech.
Live Speech Translation It translates the inputted speech in real-time and outputs it as speech. -
多言語音声翻訳プラットフォーム

SpatioTemporal Data GIS Platform

The SpatioTemporal Data GIS Platform provides meteorological data and GIS data. For detailed information about the data and usage policies, please refer to the data catalog.


Data Overview
Himawari Satellite Numerical Data (Archive) You can download numerical data from all Himawari satellites, from Himawari 1 launched in 1977 to the current Himawari 8 and 9. This data is useful for long-term weather data analysis using historical data. (Data source: Japan Meteorological Agency)
Himawari Satellite Numerical Data (Real-time) You can download real-time numerical data from Himawari 8 and 9 within the last 24 hours (Himawari standard data, NetCDF data). (Data source: Japan Meteorological Agency)
Himawari Satellite Visible Light Images You can download visible light images from Himawari 8 and 9. These are color images created from three visible bands (Blue: 0.47μm, Green: 0.51μm, Red: 0.64μm). There are images provided by the Japan Meteorological Agency with standard color tones, as well as images provided by NICT with enhanced brightness through color tone transformation.
気象庁提供画像

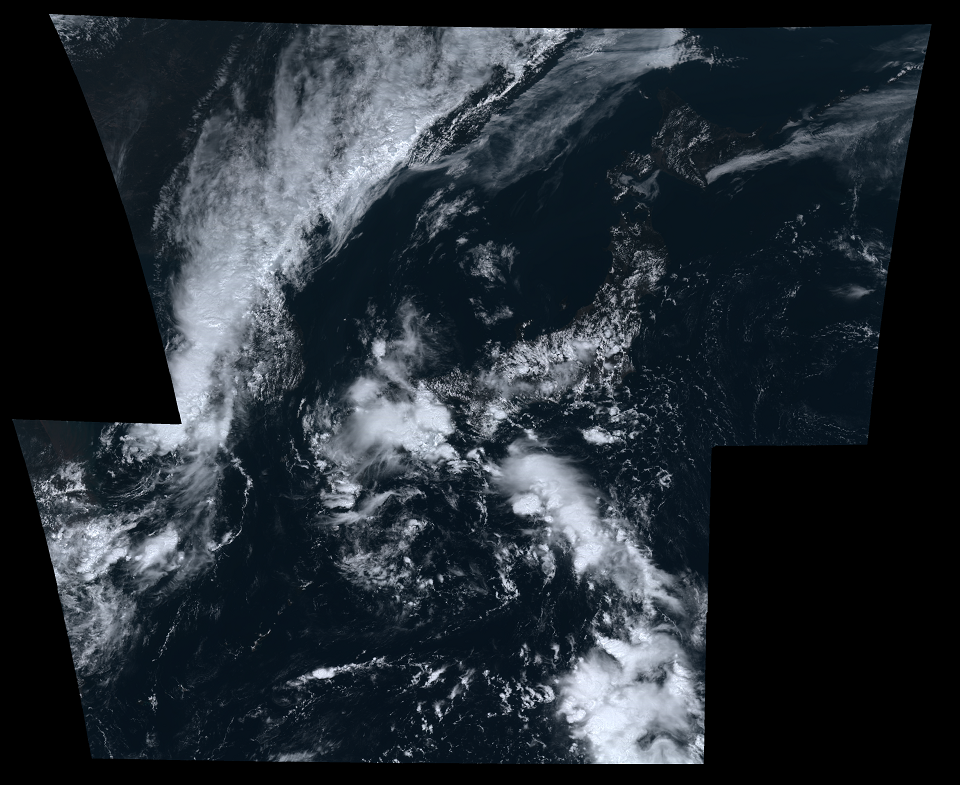

Images provided by the Japan Meteorological Agency
NICT提供画像

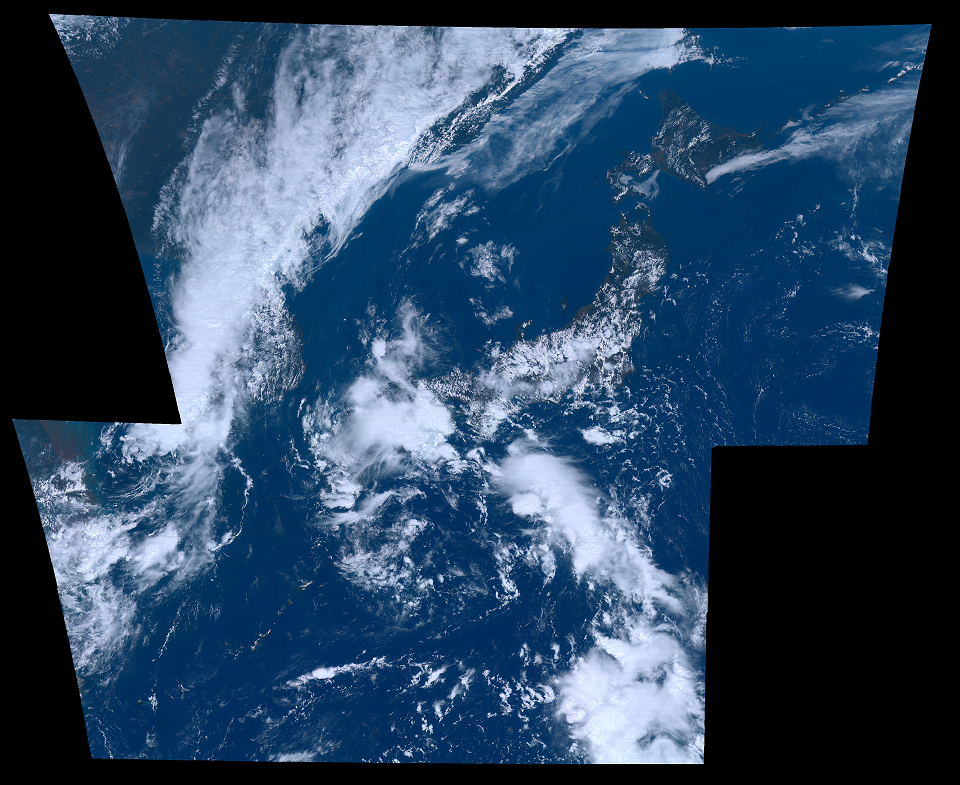

Images provided by NICT

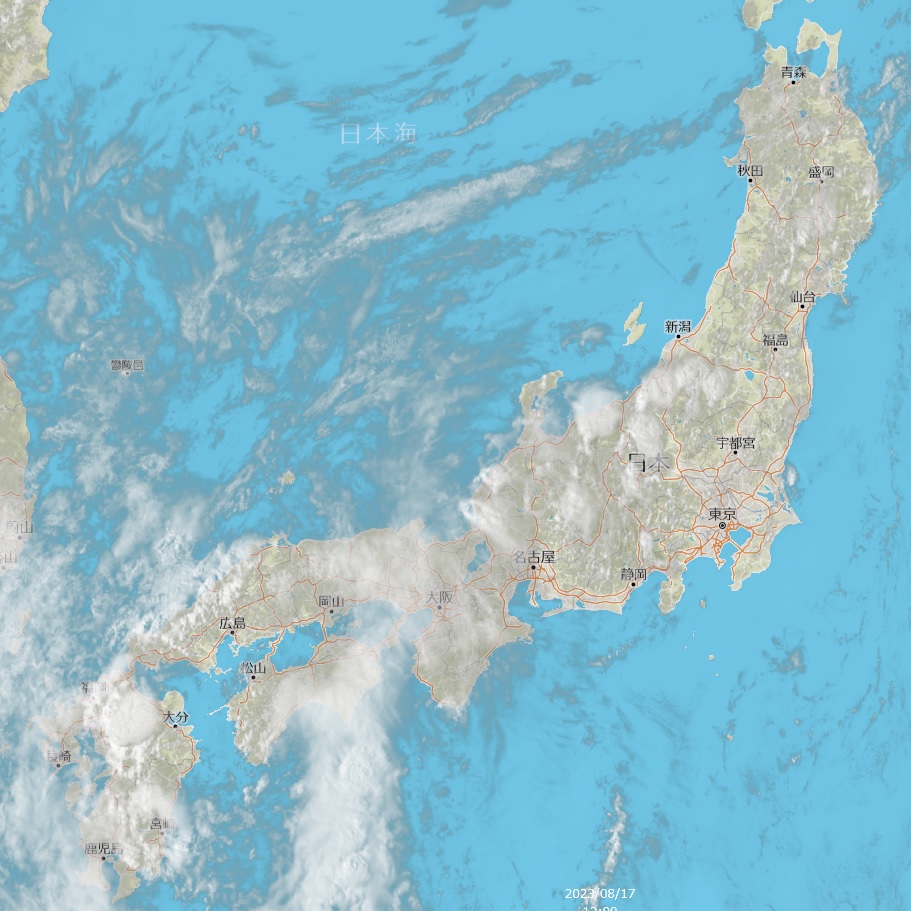

Himawari Satellite Cloud Tile Images The Japan Meteorological Agency provides Band 3 images from Himawari 8 and 9 (Japan region, Asia and Oceania region), which have been converted into tile images for GIS applications. With the cooperation of Center for Environmental Remote Sensing (CEReS), Chiba University, coordinate transformations have been performed to make it easier for users to access. The data can be accessed using the XYZ method. (Data source: NICT)
ひまわり衛星雲タイル画像
Solar radiation and related meteorological data created based on Himawari satellite data.
(Numerical data, tile images)
This is real-time numerical data for Japan as well as the Asia-Oceania region, including surface-level solar radiation, photovoltaic (PV) output analysis values, temperature, wind speed, and wind direction. Using this numerical data, various meteorological analyses can be conducted on a 1 km mesh scale for the Japan region and a 4 km mesh scale for the Asia-Oceania region.(Data provided by: NPO Solar Radiation Consortium)
The image data consists of scalable pyramid tile images that visually represent surface-level solar radiation, temperature and humidity, as well as wind speed and direction for Japan and the Asia-Oceania region, using color mapping based on numerical data. The data is accessible via the XYZ tile format.(Data provided by: NICT)
日射量

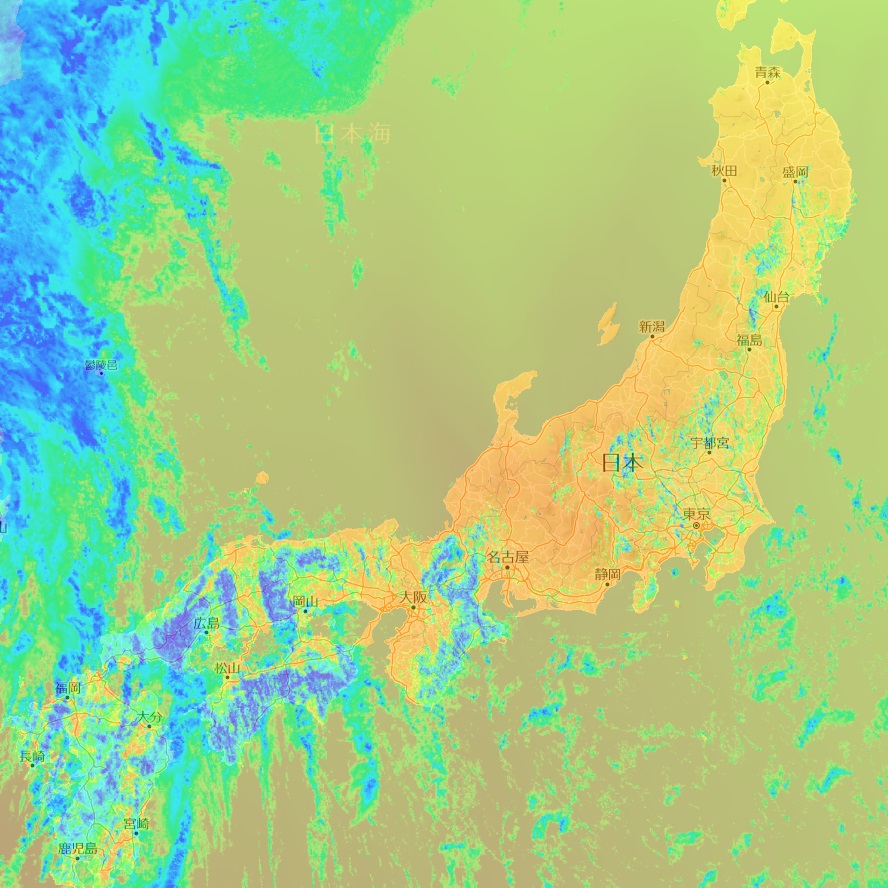

Solar Radiation
地表面気温

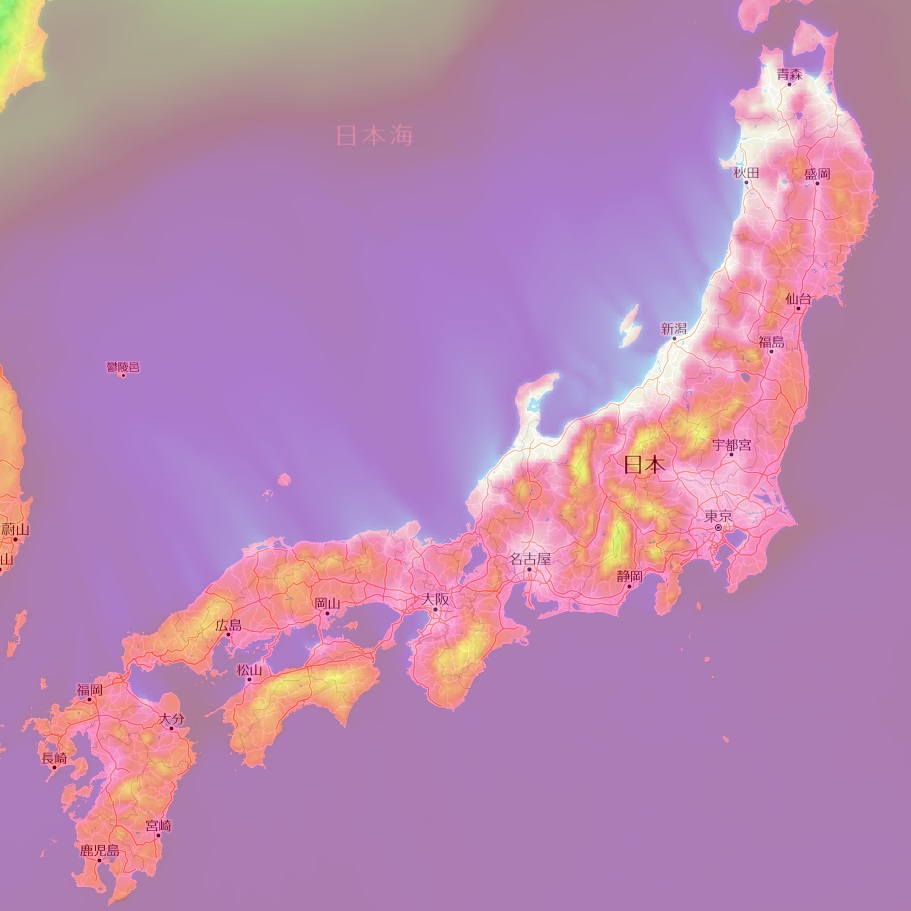

Surface Temperature
地表面相対湿度

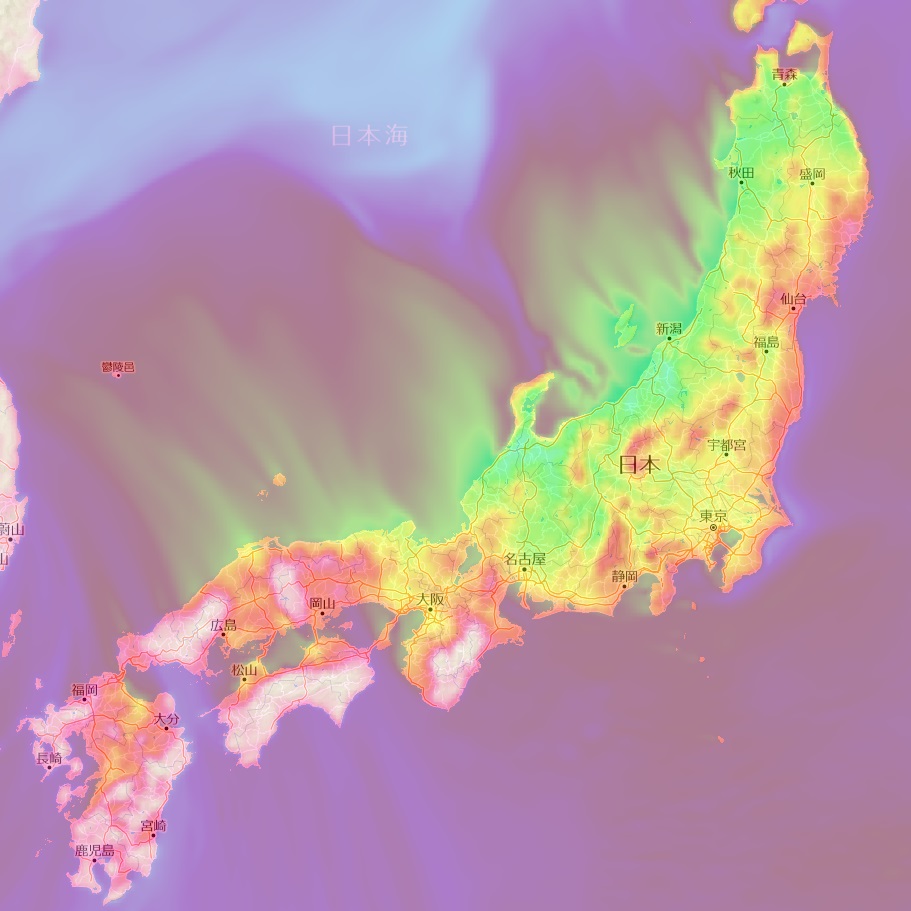

Surface Relative Humidity
地表面風向/風速

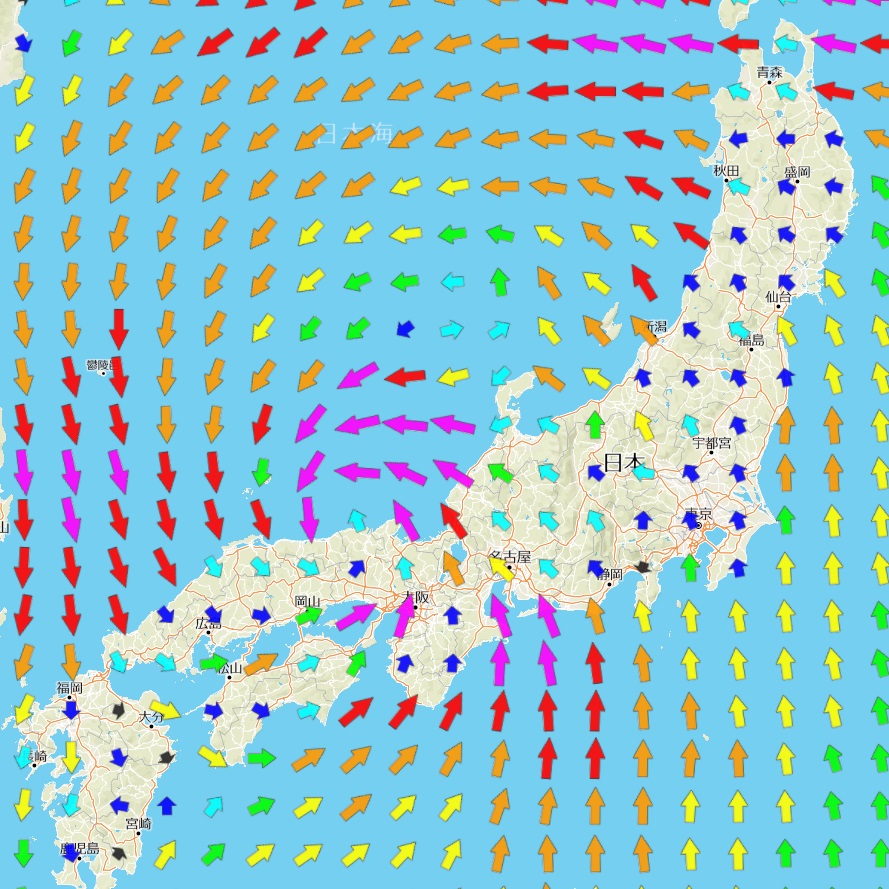

Surface Wind Direction/Wind Speed

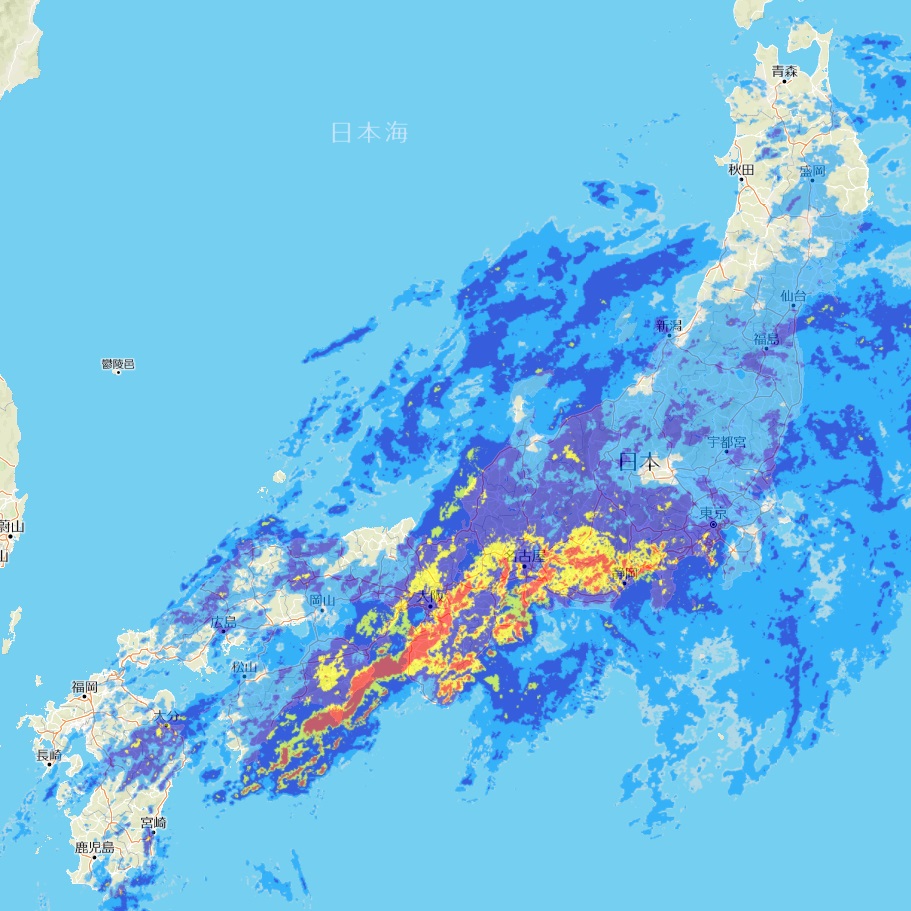

High-resolution Precipitation Nowcast Data
(Numerical data(in preparation)、Tile Image)
The high-resolution precipitation nowcast data (in GRIB2 format) is numerical data that has been converted for convenience. This numerical data can be used for data analysis at a 250m mesh resolution.
Tile images are scalable pyramid tile images that use color mapping to make linear precipitation bands and localized heavy rainfall (guerrilla downpours) easier to visualize, based on numerical data. These images can be accessed using the XYZ tile format. By using these image data, it is possible to view them in real time on GIS applications and compare them with various meteorological and GIS data.(Data provided by: Weathernews Inc.)
高解像度降水ナウキャストデータ
The Spatiotemporal Data GIS Platform Project provides WebGIS applications and useful APIs and libraries for developing WebGIS applications, using data provided by DCCS. Please refer to these resources. Below, we introduce examples of WebGIS application development.

  • On the Local Himawari WebGIS application, various meteorological data can be overlaid and compared. Among the publicly available APIs and libraries, the Timeline plugin is used, which allows for easy integration of a time axis bar into web pages.
時空間データGISプラットフォーム

DCCS Trial

For information about the DCCS trial, please see this page.

Procedures for use

When using DCCS, please comply with the respective terms and conditions according to the functions and platforms you intend to use.

■Reference

For any questions or inquiries regarding DCCS, please feel free to contact the following:

Contact for consultation and inquiries

ICT Testbed Research and Development Promotion Center
NICT Integrated Testbed Office
Email: tb-info[at]ml.nict.go.jp
※Please send it with @ for [at].
